# Configuring The Grid Layout

A grid layout contains multiple configuration options to allow developers to tailor the grid to a very specific site design. Configuring the layout can be divided into 2 overall parts:

## Layouts

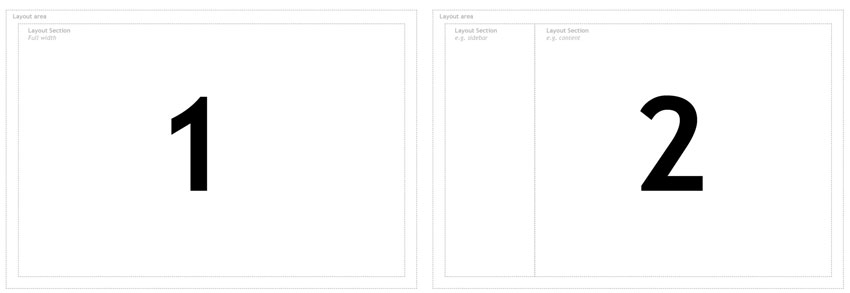

A layout is the general grid "container", it contains one or more sections which content editors can use to insert preconfigured **rows**. There are 2 main usage scenarios of layouts:

1. A single column layout which to the content editor will act like a full page canvas to insert elements on
2. A multiple column layout with a main content body, and one or more sidebar columns to insert lists or other sidebar widgets on.

<figure><img src="https://3872888104-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FgEH4FChbCn7eDDqREvdE%2Fuploads%2Fgit-blob-89c46c8e2a6267ebc0be43172317af91c63ed951%2FGrid-layout-scenarios.jpg?alt=media" alt=""><figcaption></figcaption></figure>

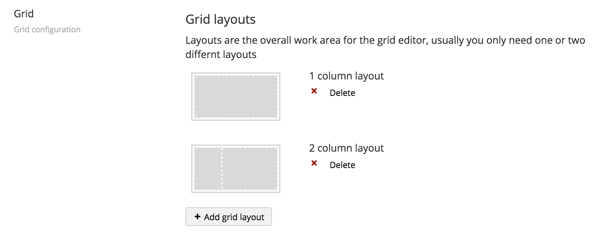

You can however configure as many layouts and layout sections as you wish, each section in the layout must be given a width in columns, so editors gets an accurate preview of their layout.

<figure><img src="https://3872888104-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FgEH4FChbCn7eDDqREvdE%2Fuploads%2Fgit-blob-92d359143311b81abd2230bd876a0db648af2f92%2Flayouts.png?alt=media" alt=""><figcaption></figcaption></figure>

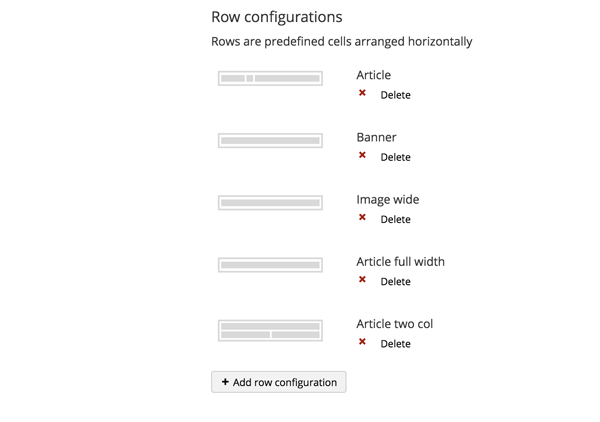

## Row configurations

A row in the grid editor contains one or more cells, which divide the row into areas where editors can enter content. So a row is merely a container of areas to insert content into. When you add a new row, you are asked to give it a name, then define cells inside the row by clicking the "+" icon. Each cell has a default width set to 4, but by clicking the inserted cell you can control its width.

It is possible to setup configurable attributes(class, rel, href) and inline styling on rows.

<figure><img src="https://3872888104-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FgEH4FChbCn7eDDqREvdE%2Fuploads%2Fgit-blob-324ada87d389aae3eee0d2b9d0313dc57124112c%2Frows.png?alt=media" alt=""><figcaption></figcaption></figure>

You can add as many cells as you like. If they overflow the total width of the row, they will be arranged after each other horizontally as you'd expect in a grid system.

<figure><img src="https://3872888104-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FgEH4FChbCn7eDDqREvdE%2Fuploads%2Fgit-blob-b1a7bebeeeef51177fb458698e89775a8ea50398%2FGrid-config.png?alt=media&#x26;token=55043420-1761-4de9-a52f-f40823fac73e" alt=""><figcaption></figcaption></figure>

Each cell can by default contain any type of editor such as textstring editors, imagespicker, embedded media or Umbraco macros. To override this behavior, uncheck the **allow all editors** option and you can specify which editors will be available for the row.


---
