Creating a Custom Dashboard

A guide that shows you how you can create a custom dashboard in Umbraco CMS.

What is a Dashboard?

A Dashboard is a tab on the right-hand side of a section eg. the Getting Started dashboard in the Content section:

Why provide a Custom Dashboard for editors?

It is generally considered good practice to provide a custom dashboard to welcome your editors to the backoffice of your site. You can provide information about the site and/or provide a helpful gateway to common functionality the editors will use. This guide will show the basics of creating a custom 'Welcome Message' dashboard. The guide will also show how you can go a little further to provide interaction using AngularJS.

The finished dashboard will give the editors an overview of which pages and media files they've worked on most recently.

Prerequisites

This tutorial uses AngularJS with Umbraco, so it does not cover AngularJS itself, there are tons of resources on that already here:

At the end of this guide, we should have a friendly welcoming dashboard displaying a list of the editor's recent site updates.

Step 1: Creating and configuring the Dashboard

Create a new folder inside our site's /App_Plugins folder. call it CustomWelcomeDashboard
Create an HTML file inside this folder called WelcomeDashboard.html. The HTML file will contain a fragment of an HTML document and does not need <html><head><body> entities.
Add the following HTML to the WelcomeDashboard.html:

WelcomeDashboard.html

<div class="welcome-dashboard">
    <h1>Welcome to Umbraco</h1>
    <p>We hope you find the experience of editing your content with Umbraco enjoyable and delightful. If you discover any problems with the site please report them to the support team at <a href="mailto:">support@popularumbracopartner.com</a></p>
    <p>You can put anything here...</p>
</div>

Similar to a property editor you will now register the dashboard in a package.manifest file.

4. Add a new file inside the ~/App_Plugins/CustomWelcomeDashboard folder called package.manifest:

package.manifest

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ]
}

The above configuration is effectively saying:

Add a tab called 'WelcomeDashboard' to the 'Content' section of the Umbraco site, use the WelcomeDashboard.html as the content (view) of the dashboard and don't allow 'translators', but do allow 'admins' to see it.

You can specify multiple controls to appear on a particular tab and multiple tabs in a particular section.

Step 2: Add Language Keys

After registering your dashboard, it will appear in the backoffice - however, it will have its dashboard alias [WelcomeDashboard] wrapped in square brackets. This is because it is missing a language key. The language key allows people to provide a translation of the dashboard name in multilingual environments. To remove the square brackets - add a language key:

Create a Lang folder in your custom dashboard folder
Create a package-specific language file: ~/App_Plugins/CustomWelcomeDashboard/Lang/en-US.xml

The App_Plugins version of the Lang directory is case-sensitive on Linux systems, so make sure that it starts with a capital L.

en-US.xml

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
  <area alias="dashboardTabs">
    <key alias="welcomeDashboard">Welcome</key>
  </area>
</language>

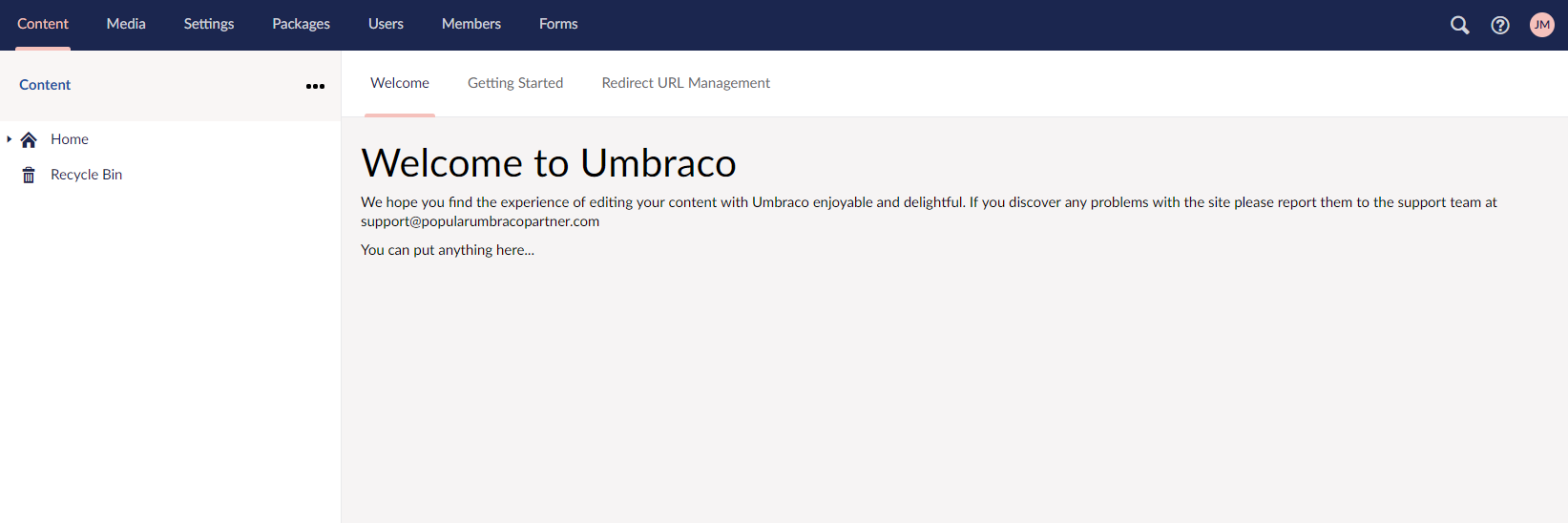

This is how our dashboard looks so far:

We can apply the same workflow to elements inside the dashboard, not only the name/alias.

3. Extend the translation file xml with the following code:

en-US.xml

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
    <area alias="dashboardTabs">
        <key alias="welcomeDashboard">Welcome</key>
    </area>
    <area alias="welcomeDashboard">
        <key alias="heading">Welcome!</key>
        <key alias="bodytext">This is the Backoffice. From here, you can modify the content, media, and settings of your website.</key>
        <key alias="copyright">© Sample Company 20XX</key>
    </area>
</language>

We are adding another area tag with a few keys. we then need to add some HTML to the WelcomeDashboard.

Adjust the dashboard HTML with the following code:

WelcomeDashboard.html

<div class="welcome-dashboard">
    <h1><localize key="welcomeDashboard_heading">Default heading</localize></h1>
    <p><localize key="welcomeDashboard_bodytext">Default bodytext</localize></p>
    <p><localize key="welcomeDashboard_copyright">Default copyright</localize></p>
</div>

The localize tag will be replaced with the translated keywords. We have some default text inside the tags above, which can be removed. It would usually not be visible after the translation is applied.

As for the localize tag syntax in HTML, the area alias is combined with the key alias - so if you want to translate:

en-US.xml

<localize key="welcomeDashboard_heading">Default heading</localize>

The XML for that specific key will look like this:

en-US.xml

    <area alias="welcomeDashboard">
        <key alias="heading">Welcome!</key>
    </area>

The area and key aliases are combined and an underscore is added in between.

If you don't see the brackets disappearing - you may need to restart the website.

Different languages

With the above steps completed, our dashboard is all set up to be translated across different backoffice languages.

To test it out, you can add another language XML file, like da.xml for the Danish language.

da.xml

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<language>
    <area alias="dashboardTabs">
        <key alias="welcomeDashboard">Velkommen</key>
    </area>
    <area alias="welcomeDashboard">
        <key alias="heading">Velkommen!</key>
        <key alias="bodytext">Dette er Backoffice. Herfra kan du ændre indholdet, medierne og indstillingerne på din hjemmeside.</key>
        <key alias="copyright">© Sample Selskab 20XX</key>
    </area>
</language>

The backoffice language can be changed in the Users section if you wish to test out the translations.

Step 3: Adding style

Dashboards can be styled with CSS, however, there are a couple more steps to do to be able to apply a custom stylesheet.

Inside the package.manifest we add a bit of JSON to describe the dashboard's required JavaScript and stylesheet resources:

Add the following JSON to the package.manifest file:

package.manifest

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ],
    "javascript": [
        /*javascript files listed here*/
    ],
    "css": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.css"
    ]
}

Create a stylesheet in our CustomWelcomeDashboard folder called customwelcomedashboard.css, and add some style:

CustomWelcomeDashboard.csss

.welcome-dashboard h1 {
    font-size:4em;
    color:purple;
}

The stylesheet will be loaded and applied to our dashboard. Add images and HTML markup as required.

One caveat is that the package.manifest file is loaded into memory when Umbraco starts up. If you are adding a new stylesheet or JavaScript file you will need to start and stop your application for it to be loaded.

For version 9 and above

Smidge with RunTimeMinification setting is scheduled for removal on Umbraco 14. You can install the package separately if needed.

Hopefully, now you can see the potential of what you can provide to an editor as a basic welcome dashboard.

Step 4: Adding functionality

We can add functionality to the dashboard by associating an AngularJS controller with the HTML view.

Add a new file to the CustomWelcomeDashboard folder called customwelcomedashboard.controller.js where our controller code will live.
Register the AngularJS controller to the Umbraco Angular module:

customwelcomedashboard.controller.js

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope) {
    var vm = this;
    alert("hello world");
});

Update the outer div to wire up the controller to the view In the HTML view:

WelcomeDashboard.html

<div class="welcome-dashboard" ng-controller="CustomWelcomeDashboardController as vm">

The use of vm (short for view model) is to enable communication between the view and the controller.

Update the package.manifest file to load the additional controller JavaScript file when the dashboard is displayed:

package.manifest

{
    "dashboards":  [
        {
            "alias": "welcomeDashboard",
            "view":  "/App_Plugins/CustomWelcomeDashboard/WelcomeDashboard.html",
            "sections":  [ "content" ],
            "weight": -10,
            "access": [
                { "deny": "translator" },
                { "grant": "admin" }
            ]
        }
    ],
    "javascript": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.controller.js"
    ],
    "css": [
        "~/App_Plugins/CustomWelcomeDashboard/customwelcomedashboard.css"
    ]
}

Once done, we should receive the 'Hello world' alert every time the dashboard is reloaded in the content section.

Step 5: Using Umbraco Angular Services and Directives

Umbraco has a fine selection of angular directives, resources, and services that you can use in your custom property editors and dashboards.

Inject the userService into our AngularJS controller:

customwelcomedashboard.controller.js

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope,userService) {

Use the userService's promise based getCurrentUser() method to get the details of the currently logged-in user:

customwelcomedashboard.controller.js

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService) {
    var vm = this;
    vm.UserName = "guest";

    var user = userService.getCurrentUser().then(function(user) {
        console.log(user);
        vm.UserName = user.name;
    });
});

Notice you can use console.log() to write out to the browser console window what is being returned by the promise. This helps to debug, but also understand what properties are available to use.

Update the view to incorporate the current user's name in our Welcome Message:

WelcomeDashboard.html

<h1><localize key="welcomeDashboard_heading">Default heading</localize> {{vm.UserName}}</h1>

Add a list of edited articles

An editor may find it useful to see a list of articles they have been editing along with a link to load and continue editing. This could be instead of having to remember and find the item again in the Umbraco Content Tree.

We can make use of Umbraco's Angular resource for retrieving audit log information.

We add logResource to the method and use the getPagedUserLog method to return a list of activities the current user has performed recently.

Inject the logResource into our controller:

customwelcomedashboard.controller.js

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource) {

Add a property on our ViewModel to store the log information:

customwelcomedashboard.controller.js

vm.UserLogHistory = [];

Add to our WelcomeDashboard.html View some markup using angular's ng-repeat to display a list of these log entries:

WelcomeDashboard.html

<h2>We know what you edited last week...</h2>
<ul>
    <li ng-repeat="logEntry in vm.UserLogHistory.items">{{logEntry.nodeId}} - {{logEntry.logType}} - {{logEntry.timestamp  | date:'medium'}}</li>
</ul>

Populate the array of entries using the logResource In our controller.

The getPagedUserLog method expects to receive a JSON object containing information to filter the log by:

customwelcomedashboard.controller.js

var userLogOptions = {
    pageSize: 10,
    pageNumber: 1,
    orderDirection: "Descending",
    sinceDate: new Date(2018, 0, 1)
};

These options should retrieve the last ten activities for the current user in descending order since the start of 2018.

Pass the options into the getPagedUserLog like so:

customwelcomedashboard.controller.js

logResource.getPagedUserLog(userLogOptions)
    .then(function (response) {
        console.log(response);
        vm.UserLogHistory = response;
    });

Take a look at the output of console.log of the response in your browser to see the kind of information retrieved from the log:

{pageNumber: 1, pageSize: 10, totalPages: 1, totalItems: 1, items: Array(1)}
    items: Array(1)
        0:
            $$hashKey: "object:1289"
            comment: "Published languages: English (United States)"
            entityType: "Document"
            logType: "PublishVariant"
            nodeId: 1055
            parameters: "English (United States)"
            timestamp: "2019-10-10T14:49:55.223Z"
            userAvatars: []
            userId: 1
            userName: "Jakob N"
    pageNumber: 1
    pageSize: 10
    totalItems: 1
    totalPages: 1

It's nearly all we need but missing information about the item that was saved and published.

We can use the entityResource, another Umbraco Angular resource to enable us to retrieve more information about an entity given its id.

Inject the following code into our angular controller:

customwelcomedashboard.controller.js

angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource, entityResource) {

We need to loop through the log items from the logResource. Since this includes everything, we need to filter out activities we're not interested in eg, Macro Saves, or DocType Saves. Generally, we need the entry in the log to have a nodeId, a logType of 'save' and an entity type of Media or Content.

The entityResource has a getById method that accepts the ID of the item and the entity type to retrieve useful information about the entity. For example, its Name and Icon.

The getById method is supported on the following entity types:

Document (content)
Media
Member Type
Member Group
Media Type
Document Type
Member
Data Types

This needs to be defined before we loop through the entries.

Putting this together it will look like this:

customwelcomedashboard.controller.js

  logResource.getPagedUserLog(userLogOptions)
        .then(function (response) {
            console.log(response);
            vm.UserLogHistory = response;

            // define the entity types that we care about, in this case only content and media
            var supportedEntityTypes = ["Document", "Media"];

            // define an empty array "nodes we know about"
            var nodesWeKnowAbout = [];

            // define an empty array "filtered log entries"
            var filteredLogEntries = [];

            // loop through the entries in the User Log History
            angular.forEach(response.items, function (item) {

              // if the item is already in our "nodes we know about" array, skip to the next log entry
              if (nodesWeKnowAbout.includes(item.nodeId)) {
                return;
              }

              // if the log entry is not for an entity type that we care about, skip to the next log entry
              if (!supportedEntityTypes.includes(item.entityType)) {
                return;
              }

              // if the user did not save or publish, skip to the next log entry
              if (item.logType !== "Save" && item.logType !== "Publish") {
                return;
              }

              // if the item does not have a valid nodeId, skip to the next log entry
              if (item.nodeId < 0) {
                return;
              }

              // now, push the item's nodeId to our "nodes we know about" array
              nodesWeKnowAbout.push(item.nodeId);

              // use entityResource to retrieve details of the content/media item
              var ent = entityResource.getById(item.nodeId, item.entityType).then(function (ent) {
                  console.log(ent);
                  item.Content = ent;
              });

              // get the edit url
              if (item.entityType === "Document") {
                  item.editUrl = "content/content/edit/" + item.nodeId;
              }
              if (item.entityType === "Media") {
                  item.editUrl = "media/media/edit/" + item.nodeId;
              }

              // push the item to our "filtered log entries" array
              filteredLogEntries.push(item);

            // end of loop
            });

            // populate the view with our "filtered log entries" array
            vm.UserLogHistory.items = filteredLogEntries;

        // end of function
        });

Update the view to use the additional retrieved entity information:

WelcomeDashboard.html

<h2>We know what you edited last week...</h2>
<ul class="unstyled">
    <li ng-repeat="logEntry in vm.UserLogHistory.items">
        <i class="{{logEntry.Content.icon}}"></i> <a href="/Umbraco/#/{{logEntry.editUrl}}">{{logEntry.Content.name}} <span ng-if="logEntry.comment">- {{logEntry.comment}}</span></a> - <span class="text-muted">(Edited on: {{logEntry.timestamp  | date:'medium'}})</span>
    </li>
</ul>

We now have a list of recently saved content and media on our Custom Dashboard:

The URL /umbraco/#/content/content/edit/1234 is the path to open up a particular entity (with id 1234) ready for editing.

The logResource has a few bugs prior to version 8.1.4. If you are on a lower version this may not give the expected result.

Creating a shortcut for creating new content

A key user journeys an editor will make in the backoffice is to create content. If it is a person's job to create new blog entries, why not create a handy shortcut to help them achieve this common task?

We can add a shortcut to allow the users to add a blog post.

To do this we add the following code to our view:

WelcomeDashboard.html

<div>
    <a class="btn btn-primary btn-large" href="/umbraco/#/content/content/edit/1065?doctype=BlogPost&create=true">
        <i class="icon-edit"></i>
        Create New Blog Post
    </a>
</div>

1065 is the ID of our blog section and blogPost is the alias of the type of document we want to create.

At this point we are done with the tutorial, your files should contain this:

CustomWelcomeDashboardController

customwelcomedashboard.controller.js

// Some angular.module("umbraco").controller("CustomWelcomeDashboardController", function ($scope, userService, logResource, entityResource) {
    var vm = this;
    vm.UserName = "guest";

    var user = userService.getCurrentUser().then(function (user) {
        console.log(user);
        vm.UserLogHistory = [];
        vm.UserName = user.name;
    });
    var userLogOptions = {
        pageSize: 10,
        pageNumber: 1,
        orderDirection: "Descending",
        sinceDate: new Date(2018, 0, 1)
    };

  logResource.getPagedUserLog(userLogOptions)
        .then(function (response) {
            console.log(response);
            vm.UserLogHistory = response;

            // define the entity types that we care about, in this case only content and media
            var supportedEntityTypes = ["Document", "Media"];

            // define an empty array "nodes we know about"
            var nodesWeKnowAbout = [];

            // define an empty array "filtered log entries"
            var filteredLogEntries = [];

            // loop through the entries in the User Log History
            angular.forEach(response.items, function (item) {

              // if the item is already in our "nodes we know about" array, skip to the next log entry
              if (nodesWeKnowAbout.includes(item.nodeId)) {
                return;
              }

              // if the log entry is not for an entity type that we care about, skip to the next log entry
              if (!supportedEntityTypes.includes(item.entityType)) {
                return;
              }

              // if the user did not save or publish, skip to the next log entry
              if (item.logType !== "Save" && item.logType !== "Publish") {
                return;
              }

              // if the item does not have a valid nodeId, skip to the next log entry
              if (item.nodeId < 0) {
                return;
              }

              // now, push the item's nodeId to our "nodes we know about" array
              nodesWeKnowAbout.push(item.nodeId);

              // use entityResource to retrieve details of the content/media item
              var ent = entityResource.getById(item.nodeId, item.entityType).then(function (ent) {
                  console.log(ent);
                  item.Content = ent;
              });

              // get the edit url
              if (item.entityType === "Document") {
                  item.editUrl = "content/content/edit/" + item.nodeId;
              }
              if (item.entityType === "Media") {
                  item.editUrl = "media/media/edit/" + item.nodeId;
              }

              // push the item to our "filtered log entries" array
              filteredLogEntries.push(item);

            // end of loop
            });

            // populate the view with our "filtered log entries" array
            vm.UserLogHistory.items = filteredLogEntries;

        // end of function
        });

});

WelcomeDashboard.html

<div class="welcome-dashboard" ng-controller="CustomWelcomeDashboardController as vm">
    <h1><localize key="welcomeDashboard_heading">Default heading</localize> {{vm.UserName}}</h1>
    <p><localize key="welcomeDashboard_bodytext">Default bodytext</localize></p>
    <p><localize key="welcomeDashboard_copyright">Default copyright</localize></p>

    <h2>We know what you edited last week...</h2>
    <ul class="unstyled">
        <li ng-repeat="logEntry in vm.UserLogHistory.items">
            <i class="{{logEntry.Content.icon}}"></i> <a href="/Umbraco/#/{{logEntry.editUrl}}">{{logEntry.Content.name}} <span ng-if="logEntry.comment">- {{logEntry.comment}}</span></a> - <span class="text-muted">(Edited on: {{logEntry.timestamp  | date:'medium'}})</span>
        </li>
    </ul>

    <div>
        <a class="btn btn-primary btn-large" href="/umbraco/#/content/content/edit/1065?doctype=BlogPost&create=true">
            <i class="icon-edit"></i>
            Create New Blog Post
        </a>
    </div>
</div>

Extending with Custom External Data

You can create custom Angular services/resources to interact with your own serverside data using theUmbracoAuthorizedJsonController.

Going Further

With all of the steps completed, you should have a functional dashboard that will let the logged-in user see the changes they made! Hopefully, this tutorial has given you some ideas on what is possible to do when creating a dashboard.

PreviousConclusions NextExtending the Dashboard using the Umbraco UI library

Last updated 1 year ago
